Folio #: DR039C
Location: N EUROPE

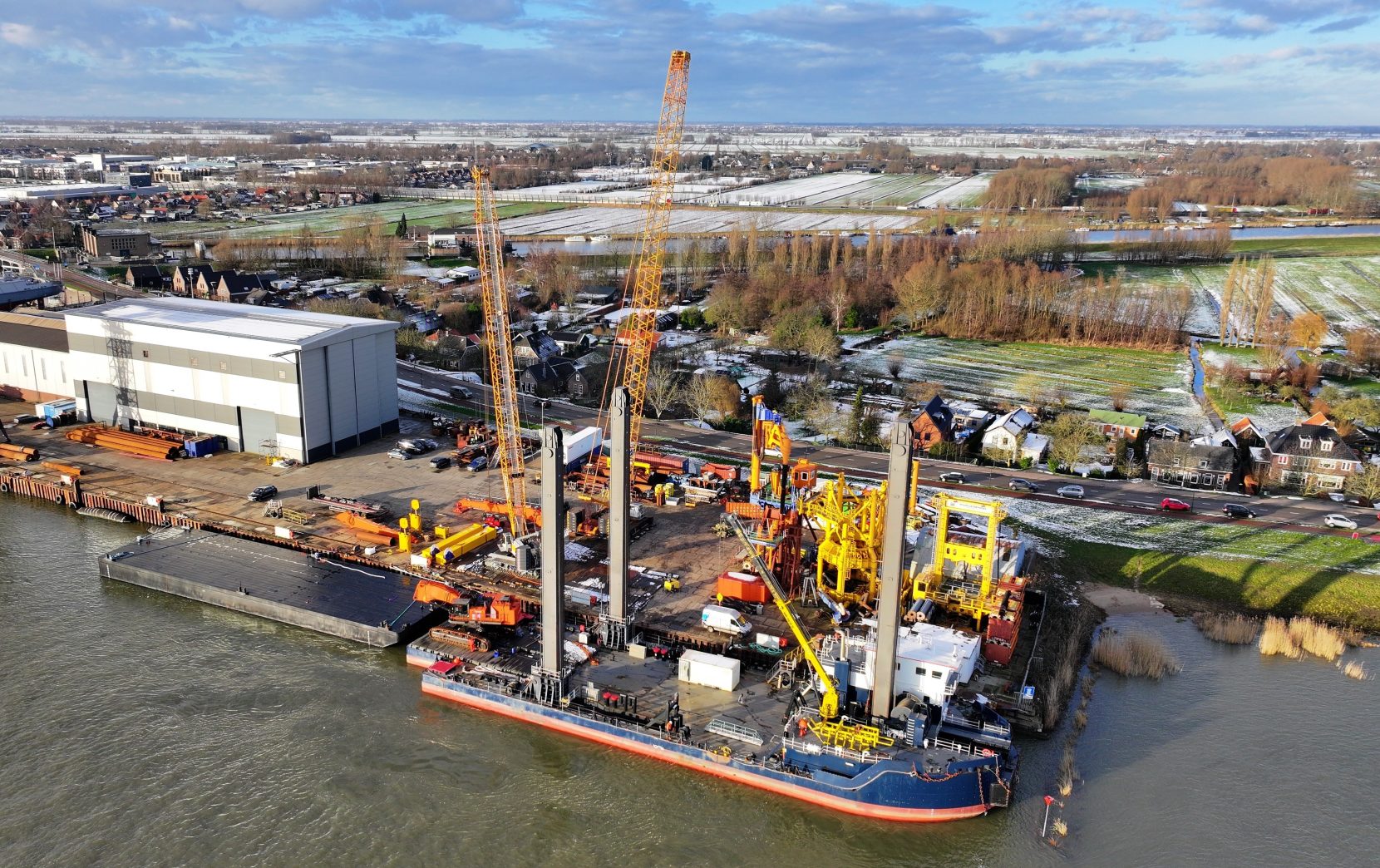

HEAVY DUTY BACKHOE DREDGER ‘NP562’ FOR SALE AND CHARTER / BUCKET SIZE 8-25 M³ / Komatsu PC 3000 (optional)
- Build Date:
- 2021, the Netherlands
- Class:
- Bureau Veritas – Assisted Propulsion; Unrestricted navigation
- Dims (L x B x D):
- 65 x 19 x 4m
- Draught (m):
- Dredge Depth (m):
- 20
- Bucket capacity (m3):
- 6 - 8
- Excavator power (kW):
- 940
- Excavator type:
- Komatsu PC 3000
- Spuds (L x D):
- 35m – 1.6 x 1.6m with spud-tilting system
- Accommodation:
- 8 berths
Folio #: DR031C
Location: Black Sea
Backhoe dredger for charter / Liebherr P 995 / Max 19.5m dredge depth
- Build Date:
- 2004, at KG Norderwerft
- Class:
- DNV-GL 100A5 Pontoon M - SS: 03/2029
- Dims (L x B x D):
- 59.73 x 16 x 3 m
- Draught (m):
- 2.12
- Dredge Depth (m):
- 19.5
- Bucket capacity (m3):
- 14.5 m³ + 11 m³
- Excavator power (kW):
- 1,600
- Excavator type:
- Liebherr P 995 Litronic
- Spuds (L x D):
- 3 x 31m legs
- Accommodation:
Folio #: DR042C
Location: Europe/W.Africa
TRAILER SUCTION HOPPER DREDGER ‘Poseidon’ FOR CHARTER/ 4,720 M³
- Build Date:
- 1973 / overhauled 2014, Netherlands
- Class:
- BV I + HULL + MACH Hopper Dredger
- Dims (L x B x D):
- 103.10 x 18.00 x 8.65m
- Draught (m):
- 7.15
- Dredge Depth (m):
- 26
- Hopper Capacity (m3):
- 4,720m³ / 5,019mt
- Pump Ashore:
- Yes
- Dredge pump:
- 2 x VOS, driven by CAT type 3516HD
- Trailing pipe:
- 2 x 900mm dia.
- Discharge type:
- Bottom doors, pump ashore, rainbow
Folio #: DR041C
Location: Europe
TRAILER SUCTION HOPPER DREDGER ‘JAMES’ FOR CHARTER AND SALE/ 3,600M³
- Build Date:
- 1980 / overhauled 2014, Belgium
- Class:
- I + HULL + MACH
- Dims (L x B x D):
- 112.8 x 18.2 x 7.0m
- Draught (m):
- 6.25
- Dredge Depth (m):
- 30
- Hopper Capacity (m3):
- 3,600m³ / 4,500-5,700mt
- Pump Ashore:
- Yes
- Dredge pump:
- 2 x IHC 175/52.5/85 NWFT single walled, 5 blade impeller
- Trailing pipe:
- 2 x 800mm dia.
- Discharge type:
- Bottom doors, pump ashore, rainbow
Folio #: DR040C
Location: Europe / W.Africa
TRAILER SUCTION HOPPER DREDGER ‘JOSE DUARTE’ FOR CHARTER/ 1,045 M³ / SPLITHULL
- Build Date:
- 2018, Portugal
- Class:
- Bureau Veritas - unrestricted
- Dims (L x B x D):
- 73 x 11.4 x 4.75 m
- Draught (m):
- 3.95
- Dredge Depth (m):
- 30, 40m (with extensions)
- Hopper Capacity (m3):
- 1,045
- Pump Ashore:
- 500 mm dia. - output 969 kW
- Dredge pump:
- Damen BP 5045 / Caterpillar C32 969 kW
- Trailing pipe:
- 1 x 500 mm dia.
- Discharge type:
- Splithull, pump ashore, rainbow
Folio #: DR036C
Location: SW USA
GRAB DREDGER “DB Two Harbors” FOR CHARTER / 50M DREDGE DEPTH
- Build Date:
- 1996, Fuji Kaiji Shipyard, Japan
- Class:
- TBA
- Dims (L x B x D):
- 60 x 24 x 4m
- :
- Dredge Depth (m):
- 50
- Hopper Capacity (m3):
- Used together with high capacity splitbarges
- :
- Grab (type/details):
- Large footprint light duty 46m3 (SWL 32mt)
- Spuds (L x D):
- 1.5 x 1.5m - 38m (length)
- Discharge type:
- Grab 25, 28, 46 m3
Folio #: DR034C
Location: Middle East
TSHD ‘SEAFORD’ FOR CHARTER / 20M DREDGE DEPTH / CAP. 1,890M³ / SPLITHULL
- Build Date:
- 1974, Germany (rebuilt 2011)
- Class:
- BV
- Dims (L x B x D):
- 80 x 11.4 x 4.57m
- Draught (m):
- 4.57
- Dredge Depth (m):
- 5.6
- Hopper Capacity (m3):
- 1,890
- Pump Ashore:
- Yes (600kW)
- Dredge pump:
- Submerged 1 x S-560-L/14 Bakker @ 410kw (installed 2011)
- Trailing pipe:
- 1 x 550mm dia.
- Discharge type:
- Splithull, pump ashore, rainbow
Folio #: DR030C
Location: UK
Backhoe dredger for charter / 39.6 x 14 m / Max dredge depth 17 m
- Build Date:
- 2012
- Class:
- RINA
- Dims (L x B x D):
- 39.60 x 14 x 2.5m
- Draught (m):
- Dredge Depth (m):
- 17
- Bucket capacity (m3):
- 2.5 - 4.5
- Excavator power (kW):
- Excavator type:
- Liebheer Excavator R 984
- Spuds (L x D):
- 3 x 24m Stabilising Spuds; dia. 1.2 x1.2m
- Accommodation:
- 8 crew
